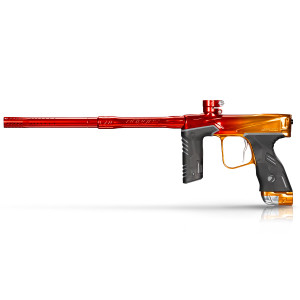

Featuring the most innovative paintball gun ever released by Dye Paintball - The Dye MRX!
Quick Feature View:
• Arc-X Bolt
• Flex Face Bolt Tip
• Next gen gun platform
• SLAP2 ASA Slide Lock AirPort
• Breech Sleeve - 5th Gen Breech System
• TAAC Detent system - revolutionary, true multi directional ball control detent
system
• Mag X-Reach trigger system-2 Trigger profiles included
• 3v-MOSair Operating System
• Internal Pressure Sensor
• Freewire Connectors
• Powered by 2 AA batteries
• DYE Boomstick UL-i Barrel system with .680, .684, .688 Included
• Mech frame compatible (coming soon)
• Patented UL 45 Frame
• Dye Sticky Grips
• Hyper 6 IM Regulator
• Lockdwn2 Clamping Feed Neck
• Quick Release Bolt
• Colored O-Rings
• Gas-Thru
• Low Profile Design
Luxury Design and Ergonomic Construction
• No exposed screws or plates
• All aluminum Aerospace grade construction
• Low profile design
• Ultralite 45 frame with full wrap quick release sticky grips
• Dual density, micro textured grips
• Best in industry ergonomics
• Simple joystick OS operation and navigation
• 3 tool assembly
• Compression formed protective case with Die cut EVA foam
NEW ARC-X bolt design
Reduced O-ring count
Longer service cycles
Simplified service
Redesigned valve porting
Improved shot to shot consistency
Softer and quieter shot signature
Dwell insensitive
High efficiency
Low operating PSI (about 120psi)
Air supply cut off in Solenoid
Minimized chamber expansion
Air spring return
The all-new ARC-X Bolt is DYE’s groundbreaking engine that delivers amazing
performance in a robust, reliable package. The ARC-X Bolt’s smooth quiet shot, high
efficiency, and soft touch on paint is the result of precise engineering. Optimized flow
paths, dwell independent valve control, air supply cut off, and nearly zero chamber
expansion are all critical to the ARC-X bolt system air efficiency. Controlled bolt
acceleration, Air Spring, impact bumpers, and low operating pressure ensure a smooth
quiet accurate shot that is extremely gentle on paint
Flex Bolt face
Proven flex face design
Extremely gentle paint handling
Flaring soft tip design offers no blowback or breech drag.
The Flex Face soft tip bolt is an instant upgrade to paint handling. The Flex Face bolt
tip ensures the most fragile paint will be gently carried through the breach and helps
protect irregularly shaped paint from clipping.
Next Gen gun Platform
Classic DYE high end features
Increased grip clearance between frame and fore grip
Increased thumb room accommodates virtually any grip style
Extended gun length for better balance and control
SLAP-2 ASA Slide Lock AirPort
Patent pending design
East to use
Slide On/Off operation
Dependable shielded cover and reliable design
Aluminum construction
DYE’s Slide Lock AirPort (SLAP) ASA’s new enclosed SLAP design provides long
term dependability in a rugged and easy-to-operate package. The shielded design has
no button to operate, no knob to turn, and no lever to get snagged. All critical
operations are protected by the Slide Lock Cover. Simply press and slide the lock cover
back to engage the air supply with ease.
TAAC Detent system - Tri Axial. Alignment. Control Detent System Breech Sleeve– 5th Gen Breach Insert System
NEW aluminum design with retaining bar
Control Band Detent- Patent Pending true multi directional ball control detent system
Adjustable detent for widest range of paint handling
Protects from damaging breech ware. Improved breach geometry – reduces ball
bounce, improved paint handling
Eliminates bulky eye plates and small easily stripped mounting screws
DYE’s patented Breech System moves into its 5th generation of refinement with
updated breech geometry and an all-new adjustable detent design that accommodates
a wide range of paint sizes including extremely small paint. Some of the important
features of the Breech Sleeve System- it shields the anti-chop eye system from dirt and
broken paint, your marker stays protected from harsh environments eliminating
permanent performance hindering breech wear, and the new retaining bar helps lock
the pipe in place. This next Gen Breech system also eliminates the need for bulky,
antiquated exterior eye plates.
New Mag Reach-2 Trigger
• New trigger blade retention design
• Magnetic return force
• Improved external trigger travel control
• Improved trigger pin design
• Adjustable trigger rake angle
• Dual stainless steel roller bearings
• Improved sustainable ramping
• Improved leverage
The Mag-Reach2 Trigger system incorporates super smooth benefits of magnetic
trigger return. It is the next evolution in individually customized ergonomic comfort, as
well as optimal trigger speed. The adjustable trigger angle, travel, and magnetic return
force allow you to create a personalized fit. All adjustments on the Mag-Reach-2 trigger
are accessed externally, so you can reach your ultimate shooting capabilities.
3v-MOS operating system
High Contrast OLED display screen
5-way joystick control
Training modes
Extended battery life
Dual player profiles
The MXR is powered by DYE’s Method Operating System (MOS). The 3V-MOS gives
the operator unrestricted access to precision tuning and unsurpassed performance.
The 5-way Joystick control and high contract OLED display screen provide an intuitive
user interface. Optimized MOS programing logic ensures lightning-fast response time,
long battery life, precision tuning, and Dual player profiles to store your exact playing
specifications. Communication between frame and Body is facilitated through the
Freewire connector pins. Compression pins ensure a positive connection between
performance driving hardware and the MCU. DYE Freewire connector pins eliminate
awkward wire routing, and dramatically improve serviceability. The MXR’s 3v-MOS truly
is advanced performance in the palm of your hand.
Internal Pressure Sensor
The MXR is equipped with an internal pressure sensor that monitors the operating
pressure in the marker. Extremely accurate digital pressure transducer helps you keep
the MXR within the optimal pressure ranges. No more packing around heavy testers
with bulky dial gauges. DYE’s Prism Interface will confirm your pressures in seconds.
Freewire connectors
• Wire-Free between frame and body – quick disconnect, contact pads
• Eliminate awkward wire routing and dramatically improves serviceability.
2-AA batteries - 3Volt power supply
The MXR operates on the new 3v-MOS system, which is powered by a simple 3-volt
power supply of 2 AA batteries.
Boomstick-i Barrel System
8.5-inch control bore
Superior accuracy
Autococker quick threads
Precision multistage honing
Self-centering 3-piece design
Slip fit, self-clamping design
Multiple inserts bore sizes- .680, .684, .688 Included
Internal Diameter Tolerance +- 0.001”
Multistage Precision Honing
All Boomstick-i™ barrels go through the same proprietary Dye multi-phase precision honing
method that you have come to count on. This highly protected, proprietary process yields a
Ra4 mirror like surface finish that is the most accurate and consistent finish available in
paintball. Multi-stage Precision Honing removes all imperfections in the barrel’s surface
efficiently minimizing ball spin and air turbulence. This produces exceptionally stable ball
control and maximizing accuracy.
Three Piece Construction
Three Piece Construction gives you the flexibility to run multiple combinations of tip length,
control bore size and back support. Gearing up with confidence knowing that every
combination of the DYE Boomstick-i™ Barrel System produces the best barrel in the
industry.
Steady Port Pressure Porting
Dye’s trademark muzzle port design is another key feature that gives Dye barrels
unparalleled accuracy and a low sound signature.
Self-Center Centering Alignment
Alignment is a critical factor in a barrel’s true accuracy. The self-centering, angled surfaces
are used to ensure precise alignment between all Boomstick-i™ components. DYE’s Proven
alignment design eliminates tolerance variations and thread wear from the equation, giving
you long lasting reliable performance and accuracy.
Mech Frame compatible
Play any format with the MXR. With the simple addition of the aftermarket MXR Mech frame
that allows you to quickly swap between E-frame and M-frame set ups.
Toolless sticky grips
Simple and Quick release grips
Full 360° wrap grip
Micro texture surfaces
Superior comfort, grip, and control
Improved water intrusion protection
The 360° wraparound Sticky Grip™ with micro texture provides ultimate grip. Dual
density design offers comfort and control. The simple toolless design utilizes a durable
locking system that ensures a rock-solid grip, a reduction in potential water intrusion
areas, and at the same time quick access for service.
Patented UL 45 frame
Proprietary Dye hourglass shape
Ergonomic designed specifically around dual finger trigger design
Superior comfort
Superior Comfort, grip, and control
The UL 45 frame is the culmination of top pro player influence and progressive
engineering. Designed specifically for modern double finger triggers, the UL frame’s
Hour-Glass shape was ergonomically designed to give the player ultimate control,
comfort, and performance. The UL frame combined with DYE’s now world-famous Sticky
grips offers a secure grip for stability and accuracy, while at the same time encourages
a sustainable, rapid trigger speed. The Mag Reach-2 trigger with adjustable travel,
activation, and resistance allows for optimal tuning for unbeatable speed, reaction time,
and trigger control.
Hyper 6IM Regulator
Proven reliable design
Air pressure bleed off
Coil spring for easy service
2 screw mounting -Easy service
Top load assembly – Faster easier service provides better access to all O-rings
Regulator is integrated into SLAP-2 ASA
The Hyper 6IM features a more efficient airflow path and consistent piston
movement. The latest generation of DYE’s trusted line of regulators is the most
reliable and consistent regulator DYE has produced to date. Updated with a single
coil spring and top load assembly delivers exceptionally easy service. Integrated into
the Hyper 6IM is a pressure bleed off to ensure no gas is trapped in the marker when
degassed. These refinements were focused on performance, reliability, and safety to
ensure the best playing experience possible.
Lockdwn-Lever lock clamping feed neck
Positive grip of any size hopper neck
Thumb wheel for fine toolless tuning of clamp force
All metal design
Zero swivel collar
Adjustable Cam lever clamp
The adjustable Lever lock allows you to securely lock you R-2™ or Rotor™ Loader
onto your gun without tools. DYE’s Lever Lock feed neck sits low and tight on the marker
making sure your R-2™ or Rotor™ stays low profile with the rest of your gear.
Quick release bolt
Push button removal
Quick pin styled operation
Air lock prevents accidental release while under pressure
The all-new Quick Release Bolt Assembly features a robust steel gate system with air
lock that prevents accidental bolt release and a securing the bolt in place. A simple
push button system allows the user to remove and re-install the bolt kit in seconds.
Standard maintenance has never been easier or more accessible.
Colored O-rings
Color coded O-rings make it easy to quickly identify the correct replacement O-ring
when performing maintenance on your marker. Keep it simple!
Gas-thru
Updated airpaths enhances ergonomics and performance while also eliminating the need
for hoses. Switching hands in tight situations has never been quicker or easier.
Low Profile Design
The MXR features one of the lowest profiles in today’s market. The MXR’s streamlined for
the most competitive profile possible. With this compact profile comes dramatic weight
savings as well. The MXR weighs in at less than 1lbs 15.2 oz including barrel and batteries.
Gen2 Solenoid-Serviceable
The MXR features a serviceable solenoid assembly. Gone are the days of complete
replacements, in most cases leaking can be solved with the simple replacement of an O-
ring or cleaning of an air passage.
